Low Temperature Effusion Cell
MAIN FEATURES
MAIN FEATURES
● UHV Compatible
● Highly efficient water-cooling design
● Accurate low temperature control
● Large crucible capacity 155cc
● UHV Compatible
● Highly efficient water-cooling design
● Accurate low temperature control
● Large crucible capacity 155cc
MAIN APPLICATIONS
● MBE, surface science, sample preparation, thin film growth, II-VI semiconductor thin film research and solar energy.
MAIN APPLICATIONS
● MBE, surface science, sample preparation, thin film growth, II-VI semiconductor thin film research and solar energy.

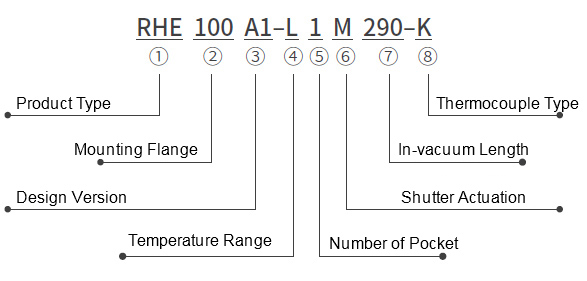

Part Number Composition
②Available options:100: DN100CF ,63: DN63CF ,35: DN40CF
④Available options: H≥1500℃, M: 400~1500℃, L: ≤400℃
⑥Available options: P: Pneumatic, M: Manual
⑧Available options: K: type K, C: type C

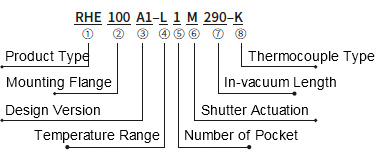

Part Number Composition
②Available options:100: DN100CF ,63: DN63CF ,
35: DN40CF
④Available options: H≥1500℃, M: 400~1500℃,
L: ≤400℃
⑥Available options: P: Pneumatic, M: Manual
⑧Available options: K: type K, C: type C
TECHNICAL DATA
TECHNICAL DATA
| Mounting Flange | DN63CF (O.D. 4.5'') DN100CF (O.D. 6.0'') |
| In Vacuum Length | 250~580mm Optional |
| In Vacuum Diameter | 61mm, 95mm |
| Operating Temperature | ≤400℃ |
| Heating Method | Tantalum Filament |
| Temperature Stability | ±0.1℃ |
| Thermocouple | Type K |
| Bakeout Temperature | 200℃ |
| Number of Pocket | 1 |
| Crucible Material | Quartz/Al2O3 /PBN/Other material upon request |
| Crucible Capacity | 60cc, 155cc |
| Cooling Method | Integrated water cooling |
| Shutter | N/A |
