Medium Temperature Effusion Cell
MAIN FEATURES
MAIN FEATURES
● UHV Compatible
● Excellent temperature and flux stability
● Independent water-cooking structure, demountable cooling jacket
● Independent water-cooking structure, demountable cooling jacket
● Large crucible capacity 155cc
● UHV Compatible
● Excellent temperature and flux stability
● Independent water-cooking structure, demountable cooling jacket
● Independent water-cooking structure, demountable cooling jacket
● Large crucible capacity 155cc
MAIN APPLICATIONS
● MBE, surface science, sample preparation, thin film growth, II-VI semiconductor thin film research and solar energy.
MAIN APPLICATIONS
● MBE, surface science, sample preparation, thin film growth, II-VI semiconductor thin film research and solar energy.

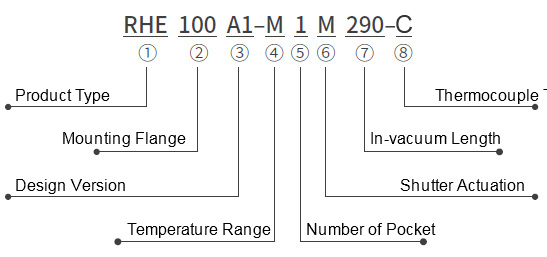

Part Number Composition

②Available options:100: DN100CF ,63: DN63CF ,35: DN40CF
④Available options: H≥1500℃, M: 400~1500℃, L: ≤400℃
⑥Available options: P: Pneumatic, M: Manual
⑧Available options: K: type K, C: type C

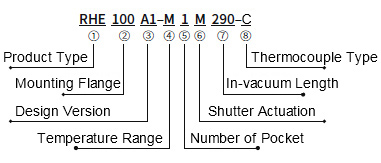

Part Number Composition

②Available options:100: DN100CF ,63: DN63CF ,
35: DN40CF
④Available options: H≥1500℃, M: 400~1500℃,
L: ≤400℃
⑥Available options: P: Pneumatic, M: Manual
⑧Available options: K: type K, C: type C
TECHNICAL DATA
TECHNICAL DATA
Mounting Flange | DN40CF (O.D.2.75''), DN63CF (O.D. 4.5'' ), DN100CF (O.D. 6.0'' ) |
In Vacuum Length | 180~500mm Optional |
In Vacuum Diameter | 36mm, 61mm, 96mm |
Operating Temperature | ≤1500℃ |
Heating Method | Tantalum Filament |
Temperature Stability | ±0.1℃ |
Thermocouple | Type K or Type C |
Bakeout Temperature | 200℃ |
Number of Pocket | 1 |
Crucible Material | Quartz/Al2O3 /PBN/Other material upon request |
Crucible Capacity | 7cc, 10cc, 60cc, 155cc, Other size upon request |
Cooling Method | Integrated water cooling or Separated water-cooling jacket |
Shutter | Integrated shutter for DN40CF, Manual or Pneumatic |
