Multifunction Temperature Controller
MAIN FEATURES
MAIN FEATURES
● 7”LCD touch screen
● Multi-channel temperature control: dual-channel and four-channel temperature controls are available
● 1600W max output power per channel, power can be automatically allocated.
● Compatible with a variety of thermocouple types: K, C, N, S, R, etc.
● PID control algorithm with auto tuning function.
● Multiple working modes: manual mode, constant temperature mode, curve mode.
● The maximum heating rate can be set.
● Easy operation interface, temperature change process can be displayed through the curve.
● Remote control and diagnosis, easy firmware upgrade
● Communication Interface：USB/Ethernet
● 7”LCD touch screen
● Multi-channel temperature control: dual-channel and four-channel temperature controls are available
● 1600W max output power per channel, power can be automatically allocated.
● Compatible with a variety of thermocouple types: K, C, N, S, R, etc.
● PID control algorithm with auto tuning function.
● Multiple working modes: manual mode, constant temperature mode, curve mode.
● The maximum heating rate can be set.
● Easy operation interface, temperature change process can be displayed through the curve.
● Remote control and diagnosis, easy firmware upgrade
● Communication Interface：USB/Ethernet
MAIN APPLICATIONS
● Temperature controller for cracker, effusion cell, manipulator (sample heating stage) and other filament heating and temperature control applications.
● Other resistance heating equipment: such as oven, furnace, DC heating belt, etc.
● Temperature monitoring equipment
● Programmable DC power supply
MAIN APPLICATIONS
● Temperature controller for cracker, effusion cell, manipulator (sample heating stage) and other filament heating and temperature control applications.
● Other resistance heating equipment: such as oven, furnace, DC heating belt, etc.
● Temperature monitoring equipment
● Programmable DC power supply

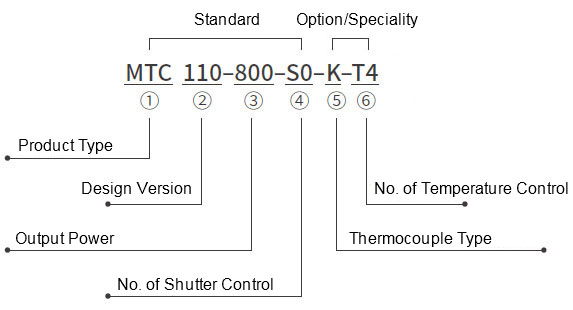

Part Number Composition
② Available options 110/210：One-channel Temperature Control;
220：Dual-channel Temperature Controls，240：Four-channel temperature Control
③ Available options 400W，600W，800W，1200W，1600W
④ Available options S0: No Shutter Control,
S1: One Shutter Control, S2: Two Shutter Controls
Note： 110 Design (Output Power)：400W，600W，800W；
210 Version (Output Power)：1200W，1600W；
220/240 Design (Output Power): 800W，1200W，1600W

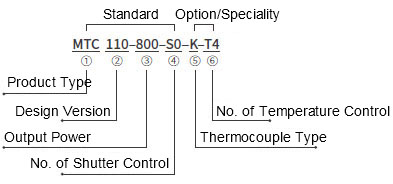

Part Number Composition
② Available options 110/210：One-channel Temperature Control;
220：Dual-channel Temperature Controls，
240：Four-channel temperature Control
③ Available options 400W，600W，800W，1200W，1600W
④ Available options S0: No Shutter Control,
S1: One Shutter Control,
S2: Two Shutter Controls
Note：110 Design (Output Power)：400W，600W，800W；
210 Version (Output Power)：1200W，1600W；
220/240 Design (Output Power): 800W，1200W，1600W
TECHNICAL DATA
TECHNICAL DATA
|
Product Categories |
MTC110 |
MTC210 |
MTC220 |
MTC240 |
|
Temperature Control |
One Channel |
One Channel |
Dual Channels |
Four Channels |
|
Maximum Output Power |
400/600/800 W |
1200 / 1600W |
800 /1200 / 1600W |
|
|
Maximum Output Current |
20A |
40A |
20A / Channel |
20A / Channel |
|
Input Voltage |
100~120VAC/200~240VAC; 50Hz/60Hz |
|||
|
Maximum Output Voltage |
DC 40V |
|||
|
Output PowerRipple |
<100mV P-P |
|||
|
Analog Input Control |
0~5V |
|||
|
Remote Control Interface |
Ethernet |
|||
|
Temperature Stability |
±0.1℃ |
|||
|
Dimensions |
483 × 133 × 440mm (3U, 19英寸机柜) |
|||
|
No. of Shutter Control |
S0：No Shutter |
S0：No Shutter |
||
|
Net Weight |
8.3kg |
9.3kg |
10.7kg |
|
Multifunction Temperature Controller
MAIN FEATURES
MAIN FEATURES
● 7”LCD touch screen
● Multi-channel temperature control: dual-channel and four-channel temperature controls are available
● 1600W max output power per channel, power can be automatically allocated.
● Compatible with a variety of thermocouple types: K, C, N, S, R, etc.
● PID control algorithm with auto tuning function.
● Multiple working modes: manual mode, constant temperature mode, curve mode.
● The maximum heating rate can be set.
● Easy operation interface, temperature change process can be displayed through the curve.
● Remote control and diagnosis, easy firmware upgrade
● Communication Interface：USB/Ethernet
● 7”LCD touch screen
● Multi-channel temperature control: dual-channel and four-channel temperature controls are available
● 1600W max output power per channel, power can be automatically allocated.
● Compatible with a variety of thermocouple types: K, C, N, S, R, etc.
● PID control algorithm with auto tuning function.
● Multiple working modes: manual mode, constant temperature mode, curve mode.
● The maximum heating rate can be set.
● Easy operation interface, temperature change process can be displayed through the curve.
● Remote control and diagnosis, easy firmware upgrade
● Communication Interface：USB/Ethernet
MAIN APPLICATIONS
● Temperature controller for cracker, effusion cell, manipulator (sample heating stage) and other filament heating and temperature control applications.
● Other resistance heating equipment: such as oven, furnace, DC heating belt, etc.
● Temperature monitoring equipment
● Programmable DC power supply
MAIN APPLICATIONS
● Temperature controller for cracker, effusion cell, manipulator (sample heating stage) and other filament heating and temperature control applications.
● Other resistance heating equipment: such as oven, furnace, DC heating belt, etc.
● Temperature monitoring equipment
● Programmable DC power supply
Part Number Composition
② Available options 110/210：One-channel Temperature Control;
220：Dual-channel Temperature Controls，240：Four-channel temperature Control
③ Available options 400W，600W，800W，1200W，1600W
④ Available options S0: No Shutter Control,
S1: One Shutter Control, S2: Two Shutter Controls
Note： 110 Design (Output Power)：400W，600W，800W；
210 Version (Output Power)：1200W，1600W；
220/240 Design (Output Power): 800W，1200W，1600W
Part Number Composition
② Available options 110/210：One-channel Temperature Control;
220：Dual-channel Temperature Controls，
240：Four-channel temperature Control
③ Available options 400W，600W，800W，1200W，1600W
④ Available options S0: No Shutter Control,
S1: One Shutter Control,
S2: Two Shutter Controls
Note：110 Design (Output Power)：400W，600W，800W；
210 Version (Output Power)：1200W，1600W；
220/240 Design (Output Power): 800W，1200W，1600W
TECHNICAL DATA
TECHNICAL DATA
|
Product Categories |
MTC110 |
MTC210 |
MTC220 |
MTC240 |
|
Temperature Control |
One Channel |
One Channel |
Dual Channels |
Four Channels |
|
Maximum Output Power |
400/600/800 W |
1200 / 1600W |
800 /1200 / 1600W |
|
|
Maximum Output Current |
20A |
40A |
20A / Channel |
20A / Channel |
|
Input Voltage |
100~120VAC/200~240VAC; 50Hz/60Hz |
|||
|
Maximum Output Voltage |
DC 40V |
|||
|
Output PowerRipple |
<100mV P-P |
|||
|
Analog Input Control |
0~5V |
|||
|
Remote Control Interface |
Ethernet |
|||
|
Temperature Stability |
±0.1℃ |
|||
|
Dimensions |
483 × 133 × 440mm (3U, 19英寸机柜) |
|||
|
No. of Shutter Control |
S0：No Shutter |
S0：No Shutter |
||
|
Net Weight |
8.3kg |
9.3kg |
10.7kg |
|
